OM-1000
High Precision and Accuracy Quick accurate readings instantly. No consumable parts to replace ever. Measures up to 6.0ppm
|
Compact and Light Real-Time Measurements
|

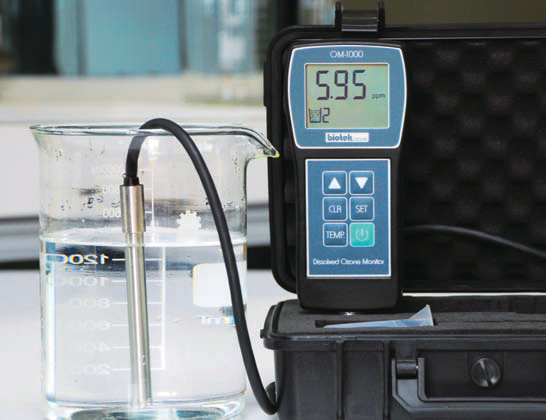

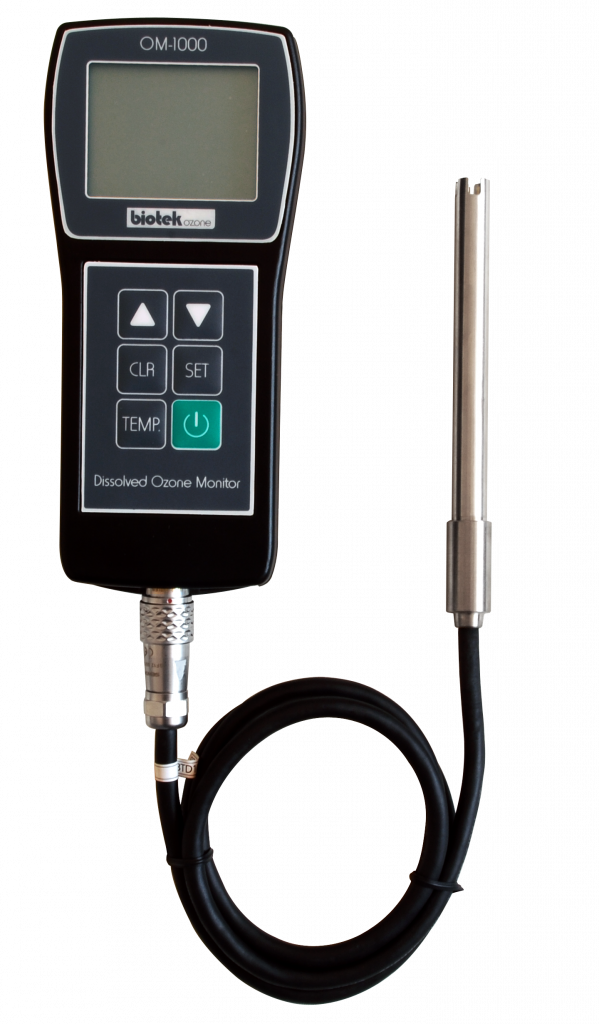

OM-1000 dissolved ozone monitor from Biotek Ozone is an ideal tool for portable dissolved ozone measurement applications. The electrode sensors are made of 99.9% gold for dissolved ozone sensitivity. The program provides real-time ozone measurements that are precise and accurate to 2 decimal places. Reading are unaffected by other substances in the sample and auto-calibrated to account for variations due to temperature.
Features:
- Measures dissolved ozone concentration in water
- Direct measurement without reagents
- High accuracy in real time
- Interference-free measurement
- Reliable reading
- Ready-to-use plug and play system
- Optional temperature sensor for dual parameter measuring
- Automatic shut-off for power saving power and light
- No replacement parts
- No operating cost
- Portable and minimal maintenance required
Specification
Model OM-1000 Dissolved Ozone Monitor: | |
Measuring range : | 0 – 6 ppm |
Display Digits : | 2 decimal places |
Accuracy : | ± 0.2ppm deviation within sample |
temperature range 10-30℃ | |
± 20% deviation above 30℃ | |
Response time : | 100% in 3 seconds |
Power : | One 9V battery |
Power consumption : | 25MW |
Device size : | 18 cm x 8 cm x 5.5 cm (LxWxD) |
Weight: | 0.90 lbs. (410.2g) with sensor |
Sensor rod : | Standard 0.49 feet (15cm) stainless steel |
Sensor cable : | Standard 3.77 feet (115cm) |
Sensor plug : | 0.14 feet (4.5cm) stainless steel |
Sensor probe : | 99.9% gold electrode |

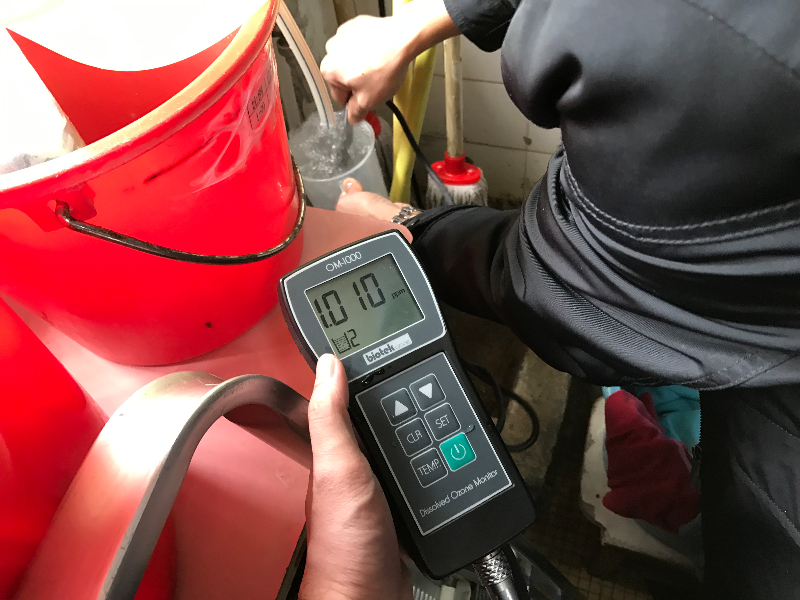

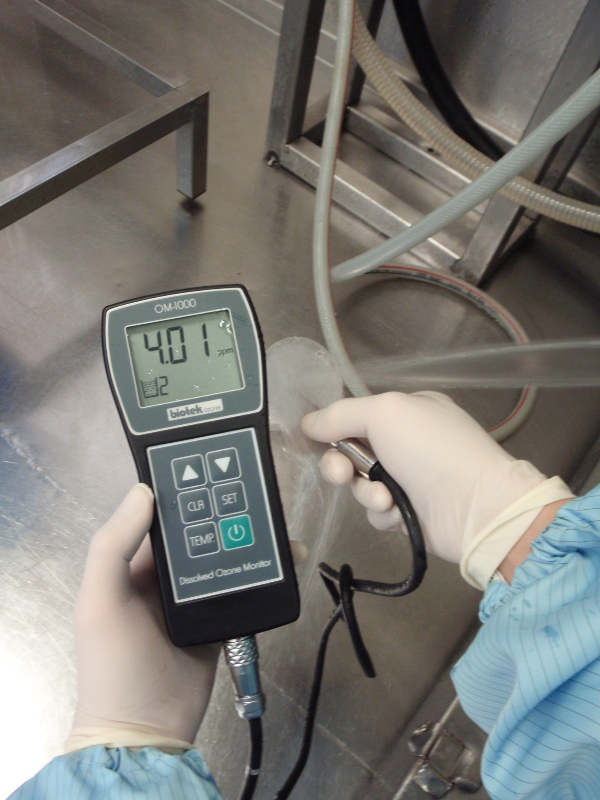

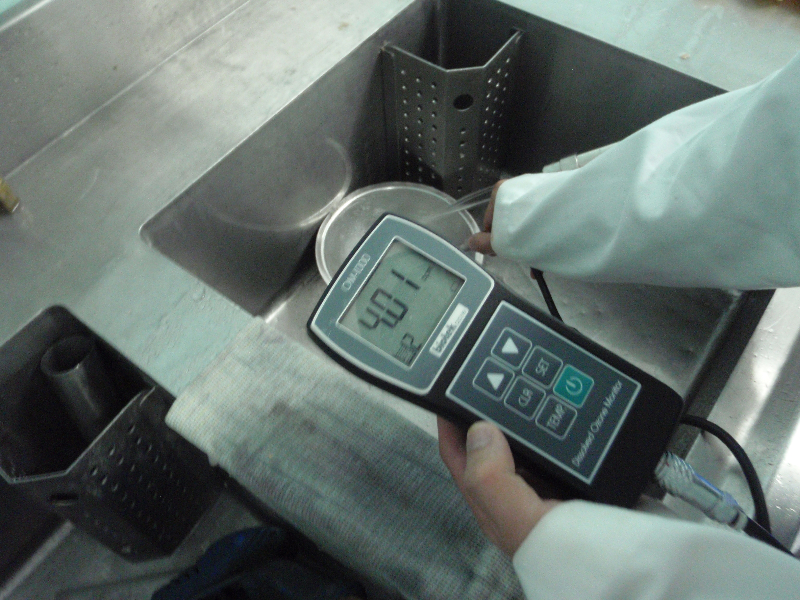

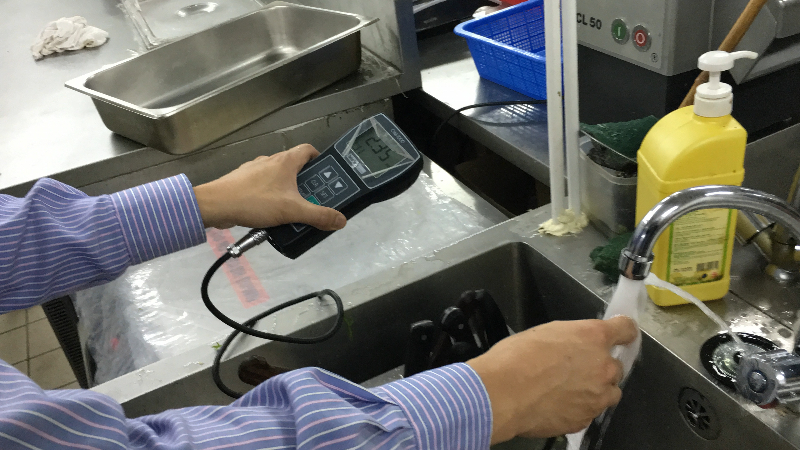

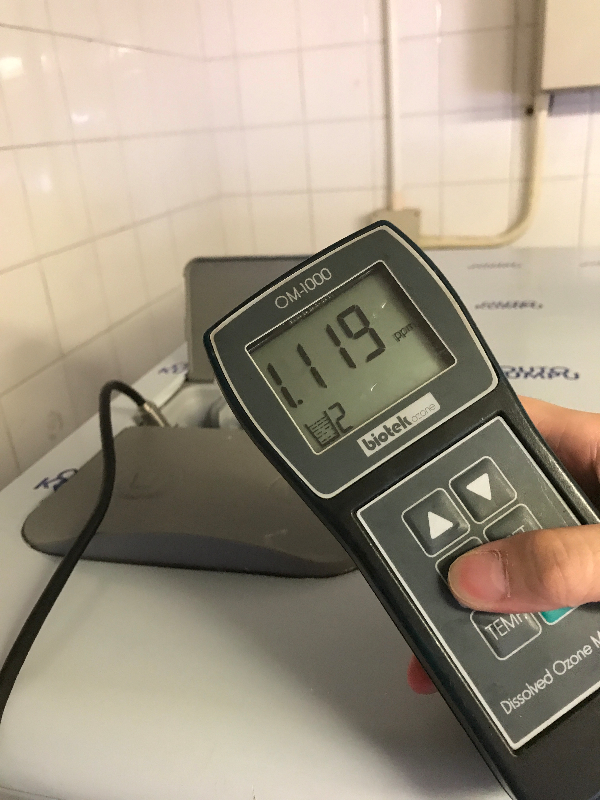

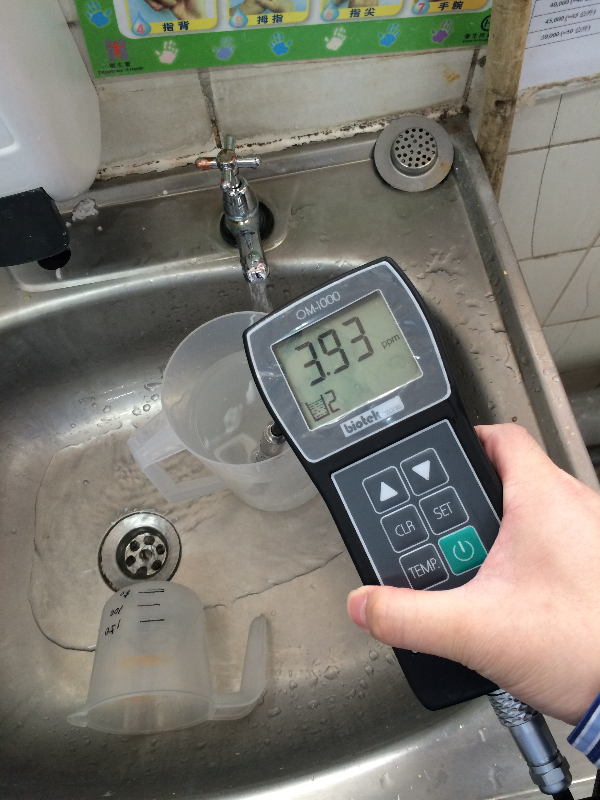

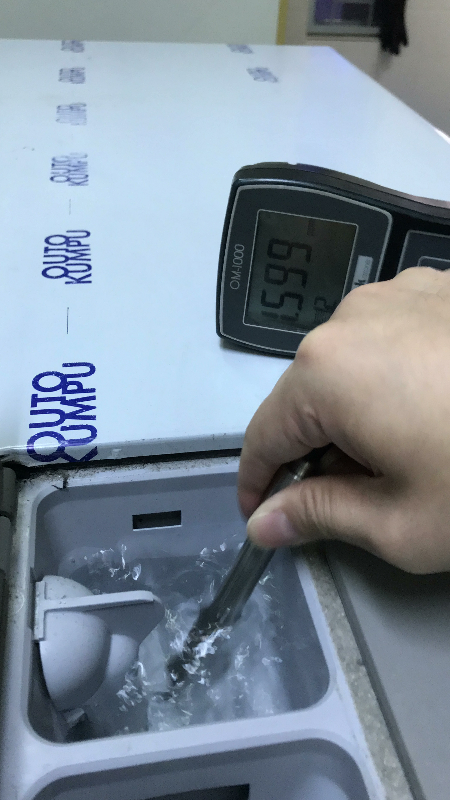

Application & Job Reference
